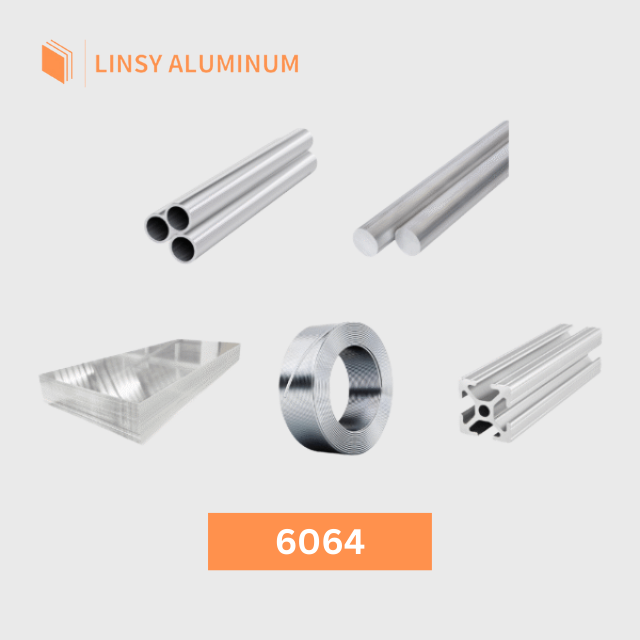

6064 aluminum is a lead-free, free-machining 6000-series alloy (Bi/Sn added) built for high-volume turned and milled parts. Linsy supplies it in T6 and T6511 for automotive, fluid-power, and precision fasteners, with sheet, tube, bar, and wire options.
可选格式： sheet / coil / tube / bar / wire
常见脾气： T6 / T6511 (also O)
处理支持： CNC machining / cut-to-length / anodizing
质量文件： 每笔订单均附有MTC报告
6064 aluminum is a lead-free, free-machining 6000-series alloy developed as an environmentally friendlier alternative to 6262. By adding tin and bismuth to the magnesium-silicon base it produces short, manageable chips and holds a good surface finish during high-volume machining. Linsy supplies 6064 in T6 and T6511 tempers for automotive, fluid-power, and precision component production.
| 形式 | 脾气 | 厚度（毫米） | 宽度（毫米） | 长度（毫米） |
|---|---|---|---|---|
| Sheet / Coil | T6, T651, T6511 | 0.5 – 200 | 500 – 2600 | 500 – 12000 |
| 形式 | 脾气 | Outer (mm) | 壁厚（毫米） | 长度（毫米） |
|---|---|---|---|---|
| 管材 | T6, T651, T6511 | 6 – 400 | 0.5 – 40 | 1000 – 12000 |
| 形式 | 脾气 | 直径（毫米） | 长度（毫米） |
|---|---|---|---|
| Bar (round / square / flat) | T6, T651, T6511 | 6 – 400 | 1000 – 12000 |
| 形式 | 脾气 | 直径（毫米） | 卷材重量 |
|---|---|---|---|
| Wire / Rod | O、T6 | 0.8 – 30 | min 50 kg per coil |
Dimensions can be customized. Share your required form, temper, and size and we will confirm feasibility and tolerance.
| 标准 | 名称 |
|---|---|
| AA / UNS | 6064 / A96064 |
| EN | EN AW-6064 (AlMg1SiCuBi) |
| 常见状态 | T6, T651, T6511 (also O) |
Typical composition of 6064 is listed below. Bismuth and tin are present for free-machining performance; exact limits should be confirmed against the ordered specification.
| 要素 | 成分（重量百分比） |
|---|---|
| Si | 0.40 – 0.80 |
| 铁 | 0.70（最大值） |
| 铜 | 0.15 – 0.40 |
| 锰 | 0.15 最大值 |
| 镁 | 0.80 – 1.20 |
| Cr | 0.15 最大值 |
| 锌 | 最大 0.25 |
| Bi | 0.40 – 0.70 (typical) |
| Sn | 0.10 – 0.30 (typical) |
| Ti | 最大 0.10 |
| 其他（每项） | 0.05 最大值 |
| 其他（共计） | 0.15 最大值 |
| Al | 剩余 |
Values below are typical minimums for extruded 6064 and reflect standard reference ranges; actual results vary with section thickness.
| 脾气 | 拉伸强度（兆帕） | 屈服强度（兆帕） | 伸长率（%，分钟） |
|---|---|---|---|
| T6 / T6511 | ≥ 310 | ≥ 260 | ≥ 10 |
T6 / T6511 are the standard tempers for 6064, providing the high strength and stable machining behavior needed for valves, fittings, and fasteners. T6511 is the common extrusion temper; choose it unless a specific drawing calls for another condition. Annealed (O) stock is available where maximum formability is required before machining.
Bismuth and tin promote short chip formation, improving tool life and surface finish in high-volume turning and milling.
6064 keeps good corrosion resistance for a free-machining alloy, suitable for fluid-power and automotive environments.
The alloy forms adequately in softer tempers but is primarily selected for machined parts. Welding is possible with standard methods; post-weld strength is lower than the base temper.
6064 is optimized for machining — use sharp tooling and appropriate speeds for aluminum to take full advantage of its chip-breaking behavior. Finish machining after aging gives the most stable dimensions. Anodizing is possible but free-machining additives can affect appearance; confirm finish expectations before production. Welding should be specified carefully because of local softening.
Every 6063 square bar shipment leaves our Shenzhen plant with a Mill Test Certificate (MTC) that reports the actual chemical analysis and mechanical results for the heat. In-house checks cover dimensional tolerance, surface condition, and temper verification. Our production system is managed under ISO 9001, ISO 14001, and ISO 45001. Where a project requires it, third-party test reports (for example SGS) can be arranged on request.
Linsy is a Shenzhen-based aluminum supplier with more than 20 years of production experience across the 1000 to 8000 series. For 6063 we support both standard extruded profiles and made-to-order sections, with in-house cutting, CNC machining, and anodizing or polishing finishes. Common tempers and sizes are held for faster turnaround, while custom dimensions are produced to order. Each order ships with an MTC so procurement and quality teams can verify the material before it enters production.
For deeper background on this alloy, see our guide: 6064 铝终极指南（2026 年更新）. It covers temper selection, machining notes, and typical application examples useful when specifying material.
6064 is a lead-free free-machining alloy (using Bi/Sn instead of lead) aimed at high-volume machined parts, whereas 6061 is a general structural alloy and 6262 is the leaded free-machining grade.
We primarily supply T6 and T6511, with O available on request.
Yes — 6064 is a lead-free alternative designed for environments that restrict lead content. Confirm specific compliance requirements with your order.
Standard tempers and sizes are usually available within 10–60 days. Custom extrusion or machining lead times depend on section complexity and order volume — we confirm a date when the specification is fixed.
Yes. A Mill Test Certificate is issued for every shipment, reporting chemical composition and mechanical properties for the supplied heat.
Yes. We cut to length and produce custom cross-sections and tempers on request. Share your drawing or required dimensions and we will confirm feasibility.
Common options include mill finish, anodizing, and polishing. Specific finishes should be confirmed against your application and tolerance needs.
Our management system is certified to ISO 9001, ISO 14001, and ISO 45001. Third-party test reports such as SGS can be provided on request for specific orders.
