Key Highlights

  1. 2024 T4 aluminum is both strong and light.
  2. People often use it in the aerospace industry for aircraft parts.
  3. The T4 temper shows it has been heat-treated and aged, making it stronger.
  4. It is good for machining, but it doesn’t resist corrosion as well as some other aluminum alloys.
  5. Copper is the main element added to 2024 T4 aluminum, helping to give it strength.

Introduction

The Aluminum Association believes that 2024 aluminum is a tough alloy. People prefer it in places that need strong yet light materials. It has high tensile strength and low fatigue, making it great for tough tasks. This blog post will look into the features, uses, and benefits of 2024 T4 aluminum and show why it matters in different fields.

What is 2024-T4 Aluminum?

2024-T4 Aluminum is a strong aluminum alloy that resists wear well and is easy to work with. This alloy is mostly used in the aerospace industry, where its strength and light weight make it ideal for building aircraft parts.

Definition and Overview

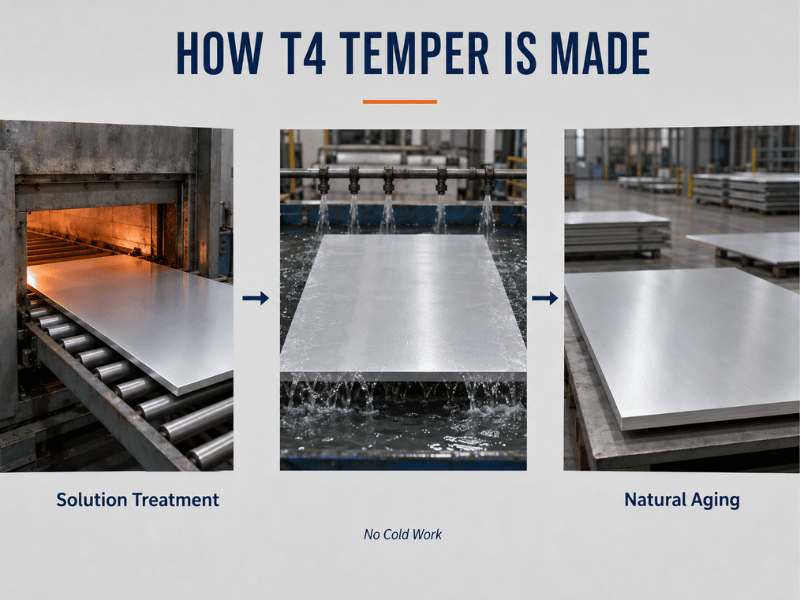

2024 T4 aluminum is a strong alloy. It is known for its great features. This alloy belongs to the 2000 series of aluminum alloys. It can be treated with heat. The “T4” label means it has been heat-treated and aged naturally. 2024 T4 aluminum has good machinability and high strength. This makes it useful in aerospace applications. Its combination of strength and lightness makes 2024 T4 aluminum a popular choice for industries that need strong and reliable materials.

Significance in the Aerospace Industry

2024 aluminum in aerospace

2024 T4 aluminum plays a key role in the Aerospace industry. It is strong and lightweight, making it ideal for planes. This material is selected for parts of aircraft where high strength is crucial. Using 2024 T4 aluminum helps ensure safety while keeping the weight low. This is important in aviation. The aerospace sector relies on materials like 2024 T4 aluminum to follow strict safety standards and performance requirements. That is why it is essential in building modern aircraft.

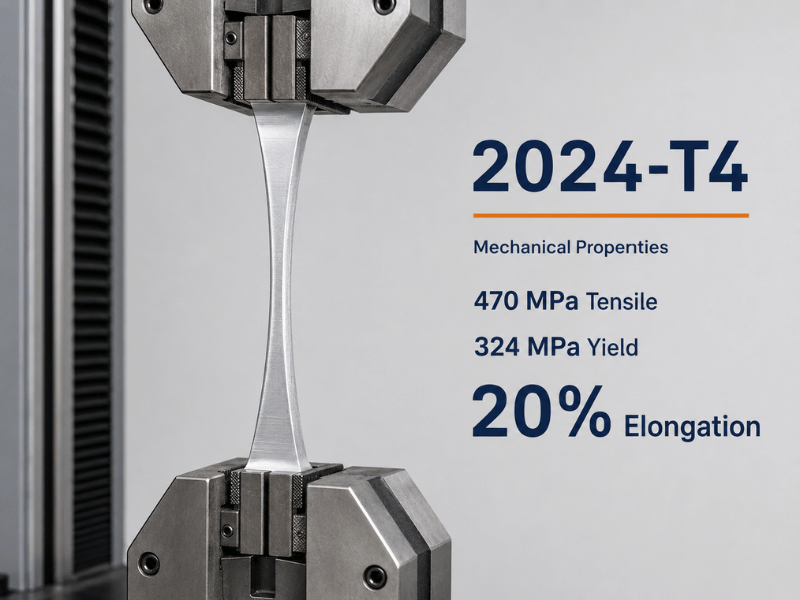

Key Physical Properties of 2024-T4 Aluminum

PropertyValue
Density2.78 g/cm³
Ultimate Tensile Strength~480 MPa (69,000 psi)
Yield Strength~310 MPa (45,000 psi)
Elongation at Break~16%
Fatigue Strength~140 MPa
Electrical Conductivity30% IACS
Modulus of Elasticity71 GPa
Shear Strength290 MPa
Thermal Expansion23 µm/m-K

Chemical Composition of 2024-T4 Aluminum

ElementComposition (%)
Al90.7 – 94.7
Cu3.8 – 4.9
Mg1.2 – 1.8
Mn0.3 – 0.9
Fe≤ 0.5
Si≤ 0.5
Zn≤ 0.25
Ti≤ 0.15
Cr≤ 0.1
Other Elements (In Total)≤ 0.15

Advantages of Using 2024-T4 Aluminum

pros and cons of 2024-T4

2024 T4 aluminum has many good benefits. It is both strong and light. This quality is very important for the aerospace industry. It provides high tensile strength and can handle fatigue better than regular materials like stainless steel.

Its great thermal and electrical conductivity makes it a favorite option. Also, its good machinability offers flexibility in making things.

In conclusion, 2024 T4 aluminum is well known for its strong mechanical properties. It is also very flexible and can be used in many different ways.

Limitations of 2024-T4 Aluminum

2024-T4 aluminum has several advantages, but it also has some disadvantages. When you look at it next to other alloys like 6061, it does not resist corrosion very well. This means it often needs extra protection, like coatings or cladding, especially in harsh environments. Its poor corrosion resistance is a big issue.

2024-T4 is tough to weld because it can crack easily, so you should look for different methods to join it. Unlike some tempers, 2024-T4 does not stretch a lot, which can affect how it can be shaped, especially when working with cobalt materials. Because of these restrictions, think carefully about whether this aluminum is the right option for your needs.

When to choose 2024-T4

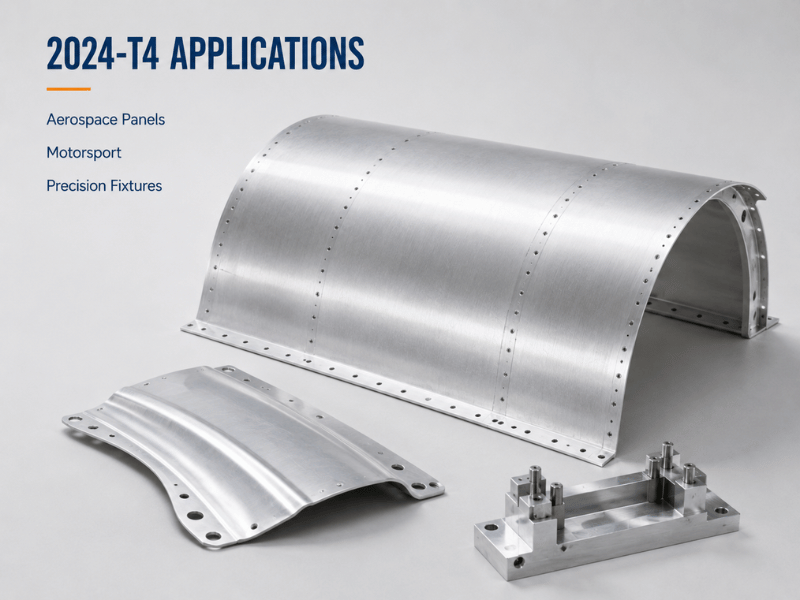

2024-T4 aluminum is a great option if you need high strength and good wear resistance. It works well for things like aerospace parts, structural components, and fittings. Its mix of strong features makes it a good fit for projects that need strength, durability, and machinability.

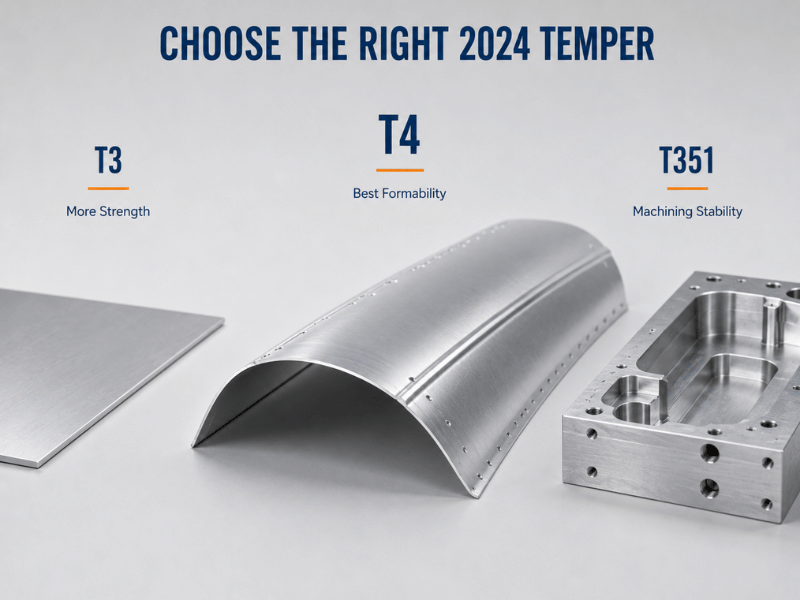

If you want a stronger material, consider using the T6 temper. For better formability, the O temper might be a good option. In general, 2024-T4 is excellent for projects needing a strong and lightweight material that performs well.

How to Improve Corrosion Resistance of 2024-T4?

  1. Anodizing: This method adds a thicker layer to the surface. It helps stop rust and lets you add color to the aluminum, making it look nicer.
  2. Cladding: A thin layer of pure aluminum or a strong metal that can resist rust is placed on top of 2024-T4 aluminum. This keeps the aluminum safe from rust but also maintains its strength.
  3. Conversion Coatings: This treatment creates a protective layer on the surface. It helps keep away rust and allows paint to stick better.
  4. Epoxy Coating: A layer of epoxy seals the surface. It prevents moisture from entering and causing rust. This is very useful in damp areas or marine settings.

Conclusion

In conclusion, the features of 2024 T4 aluminum matter in aerospace. It is well-liked for aircraft parts because it is strong and light. Its good machinability is also a plus. This alloy is special because you can weld and machine it easily. This helps meet many needs in aerospace. Knowing why 2024 T4 aluminum is important shows how it supports the safety and performance of aircraft. If you want more details or have questions, check out our FAQs section.

Why Choose Linsy 2024-O Aluminum

Linsy Aluminum is the leading aluminum supplier in China. We are your ideal choice for all your aluminum needs due to our commitment to quality, reliability, and innovation. With a proven track record of delivering top-notch aluminum products, Linsy Aluminum stands out as a trusted supplier in the industry.

We also provide custom solutions that match industry needs. By focusing on great service, we offer the best aluminum solutions. This helps our customers do well in their projects and operations around the globe.

Frequently Asked Questions

How does 2024 T4 aluminum differ from other alloys?

2024 T4 aluminum is special because it contains more copper, around 3.8-4.9%. This extra copper makes it stronger than other aluminum types. While other aluminum alloys may have elements like chromium and nickel, these do not really make 2024 aluminum much stronger.

What makes 2024 T4 suitable for aircraft components?

The combination of high fatigue strength and good electrical conductivity makes 2024 T4 aluminum great for airplane parts. It also has strong shear strength, which helps it withstand the pressure of flying.

Can 2024 T4 aluminum be welded or machined easily?

2024 T4 aluminum is easy to use. You can also shape it into different designs. However, welding it can be a challenge. This is because of its heat treatment. You usually need special techniques to keep its strong features.
