주요 특징
- 1050 aluminum alloy is a commercially pure grade (at least 99.5% Al) valued for corrosion resistance, high ductility, and formability.
- It is highly workable and easily shaped into intricate designs, making it suitable for sheet metal, reflectors, and decorative parts.
- Low strength limits its use in structural or load-bearing applications.
- High thermal and electrical conductivity make it efficient for heat exchangers and electrical conductors.
- Its bright, reflective surface suits decorative purposes such as lamp reflectors.
- It welds readily, but its softness makes machining more difficult.
소개
1050 알루미늄 합금 is a popular commercially pure grade known for corrosion resistance and high ductility. It has a reflective finish and moderate strength, which suits lamp reflectors, food-industry containers, and architectural flashings. With high thermal conductivity and good formability, it is a preferred choice for general sheet metal work. Understanding its mechanical properties, chemical composition, and tempers helps you select and use this versatile alloy effectively.

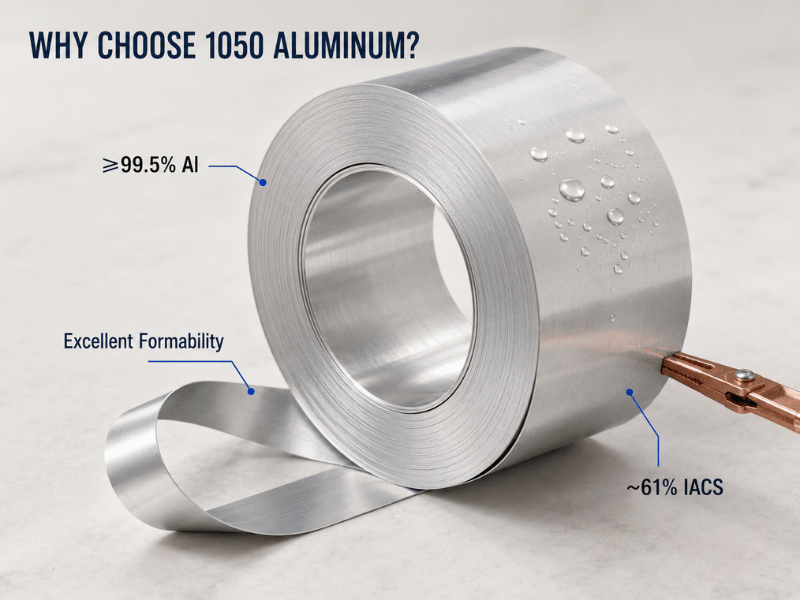

1050 알루미늄이란 무엇인가요?
1050 aluminum is a widely used grade that is easy to shape. It contains at least 99.5% aluminum, with small amounts of iron and silicon. This composition retains the qualities of pure aluminum: good corrosion resistance and high thermal and electrical conductivity. It is also known as AA1050A, S1B, and A91050, and appears in fields from packaging to electronics. Its formability lets manufacturers shape it into detailed parts using common metalworking methods. Because 1050 is very soft, it can be harder to machine and is not suited to high-strength tasks.
Key Characteristics and Benefits of 1050 Aluminum
1050 aluminum combines properties that make it useful across many industrial sectors. High ductility allows easy shaping and forming, while corrosion resistance extends service life even in harsh environments.
High thermal conductivity suits applications that need efficient heat dissipation. Together, these properties make 1050 a practical material for a wide range of products.
- 뛰어난 성형성: 1050 adapts to deep drawing and spinning, enabling intricate designs.
- 뛰어난 내식성: Suitable for outdoor exposure and moist environments.
- High thermal and electrical conductivity: Ideal for heat sinks, heat exchangers, and conductors.
Chemical Composition of 1050 Aluminum
| 요소 | 백분율(%) |
|---|---|
| 알루미늄(Al) | 99.5(최소) |
| 철(Fe) | 0.4(최대) |
| 실리콘(Si) | 0.25(최대) |
| 구리(Cu) | 0.05(최대) |
| 망간(Mn) | 0.05(최대) |
| 마그네슘(Mg) | 0.05(최대) |
| 아연(Zn) | 0.05(최대) |
| 기타 | 0.03(각각 최대) |
The composition is simple: at least 99.5% aluminum keeps the alloy light, formable, and corrosion resistant. Small iron (up to 0.4%) and silicon (up to 0.25%) additions aid workability without changing the character. Copper, manganese, magnesium, and zinc are each 0.05% or less. This high purity is why 1050 is soft, bends well, and conducts heat and electricity effectively.

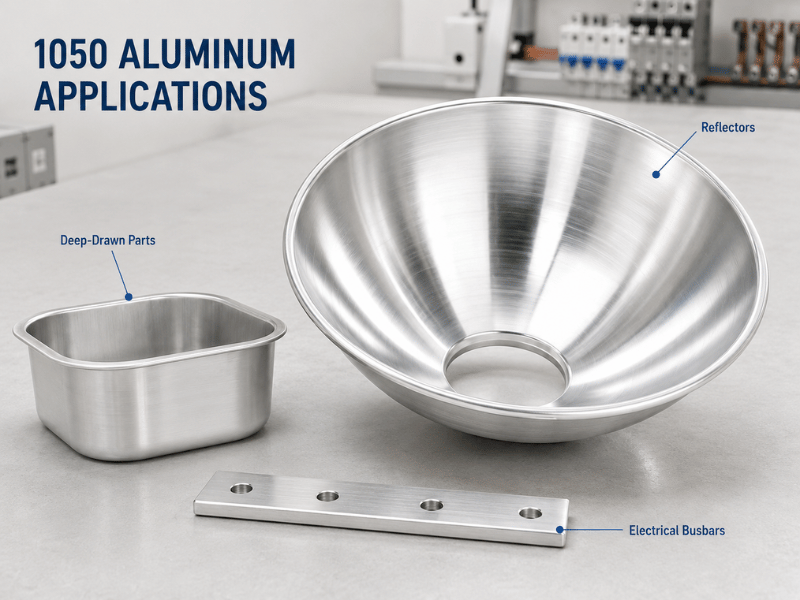

1050 알루미늄 합금의 응용 분야
1050 suits applications where formability and corrosion resistance matter more than strength. Its non-toxic nature and corrosion resistance fit food-industry containers and chemical process equipment. In general sheet metal work, it is easy to fabricate into architectural flashings and reflective lighting panels.
1050 알루미늄 대 다른 알루미늄 합금
Comparing 1050 with nearby grades helps you match the alloy to the job. Each grade trades strength, conductivity, and formability differently.

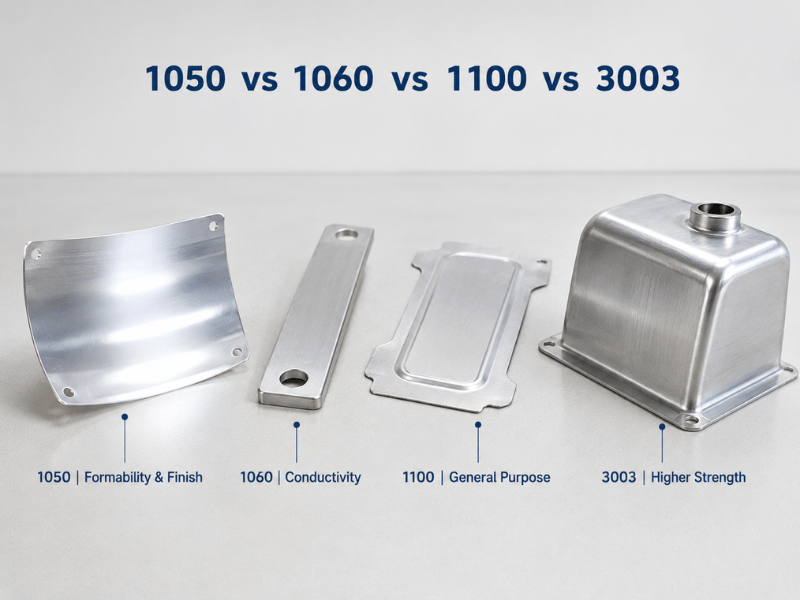

1050 대 1060 대 1100 대 3003 알루미늄 합금
| 기능 | 1050 | 1060 | 1100 | 3003 |
|---|---|---|---|---|
| Main makeup | 99.5% Al | 99.6% Al | 99% Al + tiny Cu | Al + 1% Mn |
| 힘 | ~75–110 MPa | ~70–105 MPa | ~90–120 MPa | ~110–145 MPa |
| 내식성 | 우수 | 우수 | 우수 | Very good |
| 전기 전도성 | 61–63% IACS | 61–62% IACS | 59–62% IACS | 40–50% IACS |
| 작업성 | Very easy | Very easy | Very easy | 쉽고, 약간 딱딱한 |
| Typical use | Pans, reflectors, 1050-O/H14 aluminum wire | 전선, 조명 부품 | 호일, 전선 | 조리기구, 탱크 |
1050 and 1060 are nearly pure aluminum, so they are soft and conduct electricity well—good for pans and wires. 1100 adds a little copper for more strength while keeping good conductivity, suiting foil and wires. 3003 adds manganese for higher strength but lower conductivity, fitting cookware and tanks. Choose 1050 or 1060 for soft electrical jobs, 1100 when you need a bit more strength, and 3003 for sturdier parts.
결론
1050 aluminum alloy is easy to form, corrosion resistant, and conductive, but its low strength and softness limit it to non-structural and lightly loaded parts, and machining needs care. For a reliable commercially pure grade, 1050 aluminum alloy from Linsy is backed by a Shenzhen factory with 20+ years of experience. Linsy supplies 1050 in plate, coil, wire, and other forms, with CNC machining, welding, laser cutting, and anodizing available, plus an MTC per order and ISO 9001/14001/45001 certification; SGS test reports are available on request at extra cost. Contact Linsy Aluminum to discuss your 1050 requirements and request a quote.
자주 묻는 질문
1050 알루미늄을 용접할 수 있나요?
Yes. 1050 welds well using MIG and TIG methods. Because it is heat-sensitive, control welding parameters carefully to protect its mechanical properties and corrosion resistance.
알루미늄 1050과 1350의 차이점은 무엇인가요?
1350 is tuned for electrical use with higher conductivity, while 1050 favors formability and corrosion resistance. Pick 1350 for conductors and 1050 where shaping and surface finish matter.
Is 1050 aluminum alloy suitable for welding and machining?
1050 welds readily, but its softness makes machining harder. Welding succeeds with proper parameter control; for machining, use sharp tools and lower speeds to avoid built-up edge.
