6061 T4/T6/T651/6511 Barra piatta in alluminio

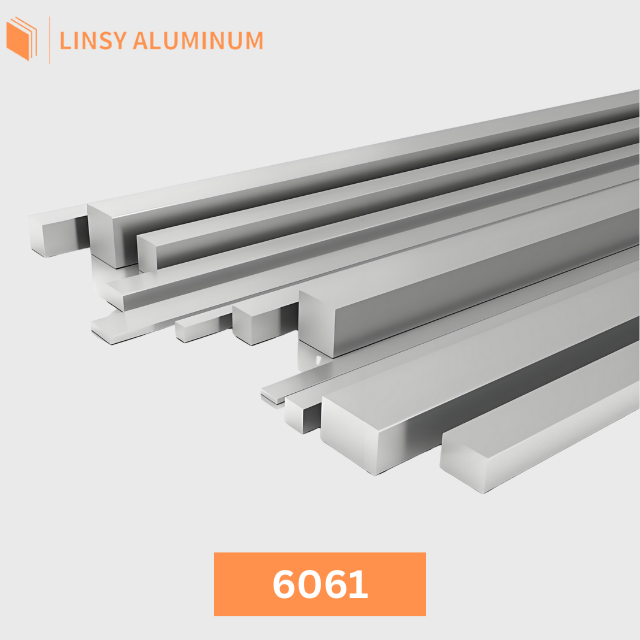

What Is 6061 Aluminum Flat Bar?

6061 Aluminum Flat Bar is made from 6061, one of the most widely used heat-treatable aluminum alloys. Its balanced mix of magnesium and silicon gives good strength after the T6/T651 aging treatment while keeping the material easy to machine and weld.

In T6 condition it delivers strong structural performance, which is why it appears across architecture, transport, and general engineering.

Available 6061 Aluminum Flat Bar

Barra piatta in alluminio 6061

Custom thickness and width combinations can be reviewed on enquiry.

Specifiche e denominazioni equivalenti

Common standards: ASTM B221, ASTM B211, EN 755, GB/T 6892.

Composizione chimica

Proprietà meccaniche in base al trattamento termico

Values below are typical for extruded or drawn product and should be confirmed against the mill test certificate for the specific temper and section.

Guida alla scelta della tempra

• O — soft, for heavy forming.
• T4 — naturally aged; good formability with moderate strength.
• T6 — solution heat-treated and artificially aged; the standard high-strength temper.
• T651 / T6511 — T6 with stress relief by stretching (T6511 for extrusions); best dimensional stability for machining.

Caratteristiche principali

Elevato rapporto resistenza/peso

T6 flat bar carries real structural load at a fraction of steel’s weight.

Buona lavorabilità

Cuts and drills cleanly, ideal for CNC-produced brackets and parts.

Saldabilità

Joins reliably by TIG/MIG; design around post-weld temper loss.

Resistenza alla corrosione

Handles atmospheric and mild marine exposure with optional anodizing.

Applicazioni

• Machined parts and fasteners
• Structural and architectural supports
• Brackets, fixtures, and machine bases
• Transportation and marine fittings

Note sulla lavorazione e sulla finitura superficiale

• involucri e staffe che richiedono un buon aspetto 6061 machines cleanly with standard carbide tooling; T651/T6511 give the best dimensional stability.
• parti strutturali leggere e decorative readily welded by TIG/MIG with 4043 or 5356 filler; strength in the heat-affected zone drops relative to T6.
• Anodizing & finishing: anodizing and powder coating available for appearance and added corrosion protection.
• finiture e rivestimenti visibili dove la finitura è importante supplied cut to size; standard and custom lengths supported.

Documenti di qualità e ispezione

• Material Test Certificate (MTC) supplied with every order, per EN 10204 3.1 where requested.
• Dimension and visual inspection on each shipment; ultrasonic or eddy-current testing available on request.
• Third-party testing such as SGS can be arranged for composition and mechanical verification when required (SGS provides a test report, not a company certification).
• Management system: ISO 9001 (quality), ISO 14001 (environment), ISO 45001 (occupational health and safety) — no year suffix.

Why Choose Linsy for 6061 Aluminum Flat Bar

• Two decades of extrusion and fabrication experience from our Shenzhen facility, serving the 1000–8000 series.
• Full processing chain — CNC machining, TIG/MIG welding, laser cutting, anodizing, polishing, and powder coating handled in-house or with qualified partners.
• Documentation you can trust: MTC with every order and SGS test reports available on request.
• Cut-to-size and custom dimensions supported for most forms, with lead times typically 10–60 days depending on temper and quantity.

Risorse correlate

The following guides cover selection, temper comparison, and machining notes for this alloy. Confirm the live URLs before publishing — replace any external references with Linsy-owned blog links where available.

• Alluminio 5052 o 6061: La guida definitiva
• Beginner’s Guide: Comparing Aluminum 5052 H32 and 6061 T6
• Leghe di alluminio 6061 vs 7075: Guida approfondita al confronto
• Alluminio 6061 T651 vs. 6061 T6: la scelta migliore
• 3003 VS 6061: confronto completo e approfondito
• Guida definitiva alle leghe di alluminio forgiate 7075 vs 6061
• Alluminio 6061 T4 101: tutto quello che c'è da sapere
• Angolo di alluminio 6061: Guida alla scelta
• La guida definitiva al tondo di alluminio 6061
• Tutto quello che c'è da sapere sull'alluminio 6061 T6511

Domande frequenti sull'alluminio 6061

Is 6061 flat bar heat-treatable?

Yes. It is supplied in O, T4, T6, T651, and T6511; T6/T651 are the structural tempers.

6061-T6 vs T651 — what is the difference?

T651 is stress-relieved by stretching after aging, giving better dimensional stability and less warping after machining.

Can flat bar be cut to size?

Yes. Standard and custom lengths are supplied cut to your dimension list.

Domande frequenti generali sugli ordini

Qual è la quantità minima d'ordine?

MOQ depends on form and temper. Standard sections and tempers can start from a few hundred kilograms; custom-dimension or special-temper orders are reviewed case by case.

Qual è il tempo di consegna standard?

For stock-available tempers, lead time is typically 10–30 days. Custom extrusion or heat-treated conditions may take up to 60 days. Confirm with our sales team at enquiry.

Can you supply cut-to-size and processing?

Yes. We offer cutting, CNC machining, welding, anodizing, and polishing. Provide your drawings or dimension list with the enquiry.

What documents come with the shipment?

Every order ships with an MTC. SGS or other third-party test reports can be arranged on request.
